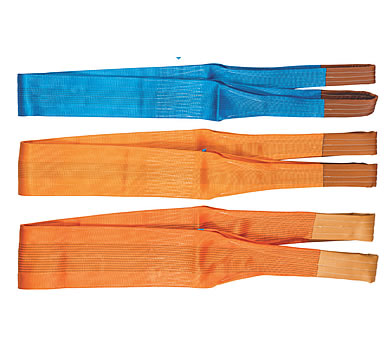

Polyester Flat Webbing Slings & Endless Round Slings

Features

  • Largest manufacturer in the Middle East & North Africa with annual capacity of 1,500 tones of soft slings
  • Manufactured to EN 1492-1 & ASME B30.9 (Flat Slings) & EN 1492-2
  • Highly customizable depending on client requirements
  • SWL from 500kg to 300 tons, EWL from 50cm to 100 mtrs
  • ISO 9001 certified production process with stringent quality control procedures
  • Large stock ready to be delivered within short delivery time
CAPACITY CHART in KGS for 1-PLY and 2-PLY FLAT POLYESTER WEBBING SLINGS
Straight Lift - 100% Choker Lift - 80% Basket/U Lift - 200% At Angle Beta - 140% At Angle Beta - 100%
Color Code Width in Inches 1-PLY 2-PLY 1-PLY 2-PLY 1-PLY 2-PLY 1-PLY 2-PLY 1-PLY 2-PLY
Violet 1 500 1000 400 800 1000 2000 700 1400 500 1000
Green 2 1000 2000 800 1600 2000 4000 1400 2800 1000 2000
Yellow 3 1500 3000 1200 2400 3000 6000 2100 4200 1500 3000
Grey 4 2000 4000 1600 3200 4000 8000 2800 5600 2000 4000
Red 5 2500 5000 2000 4000 5000 10000 3500 7000 2500 5000
Brown 6 3000 6000 2400 4800 6000 12000 4200 8400 3000 6000
Blue 8 4000 8000 3200 6400 8000 16000 5600 11200 4000 8000
Orange 10 5000 10000 4000 8000 10000 20000 7000 14000 5000 10000
Orange 12 6000 12000 4800 9600 12000 24000 8400 16800 6000 12000
CAPACITY CHART in KGS for 3-PLY and 4-PLY FLAT POLYESTER WEBBING SLINGS
Straight Lift - 100% Choker Lift - 80% Basket/U Lift - 200% At Angle Beta - 140% At Angle Beta - 100%
Color Code Width in Inches 3-PLY 4-PLY 3-PLY 4-PLY 3-PLY 4-PLY 3-PLY 4-PLY 3-PLY 4-PLY
Violet 1 1500 2000 1200 1600 3000 4000 2100 2800 1500 2000
Green 2 3000 4000 2400 3200 6000 8000 4200 5600 3000 4000
Yellow 3 4500 6000 3600 4800 9000 12000 6300 8400 4500 6000
Grey 4 6000 8000 4800 6400 12000 16000 8400 11200 6000 8000
Red 5 7500 10000 6000 8000 15000 20000 10500 14000 7500 10000
Brown 6 9000 12000 7200 9600 18000 24000 12600 16800 9000 12000
Blue 8 12000 16000 9600 12800 24000 32000 16800 22400 12000 16000
Orange 10 15000 20000 12000 16000 30000 40000 21000 28000 15000 20000
Orange 12 18000 24000 14400 19200 36000 48000 25200 33600 18000 24000
CAPACITY CHART in KGS for ROUND SLINGS
Color Code Straight Lift - 100% Choker Lift - 80% Basket/U Lift - 200% At Angle Beta - 140% At Angle Beta - 100%
Violet 1000 800 2000 1400 1000
Green 2000 1600 4000 2800 2000
Yellow 3000 2400 6000 4200 3000
Grey 4000 3200 8000 5600 4000
Red 5000 4000 10000 7000 5000
Brown 6000 4800 12000 8400 6000
Blue 8000 6400 16000 11200 8000
Orange 10000 8000 20000 14000 10000
Orange 12000 9600 24000 16800 12000
Orange (Sideseam) 15000 12000 30000 21000 15000
Orange (Sideseam) 20000 16000 40000 28000 20000
Orange (Sideseam) 25000 20000 50000 35000 25000
Orange (Sideseam) 125000 100000 250000 175000 125000
